Intelligent Electric Tetragenous Direct Shear Testing Apparatus

Payment Terms:	T/T,L/C;negotiable
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: STSJ-5A

Packing: standard export woden case

Usage: Others

Brand Name: yueke

Production Capacity: 15 Set/Sets / Week

Delivery Date: within 15 days after upon r...

Power: Others

key words: testing machine

1.Test resisting shear strength of soil specimens
2.ABS vertical type controller
3.LCD display
Direct Shear Testing Apparatus

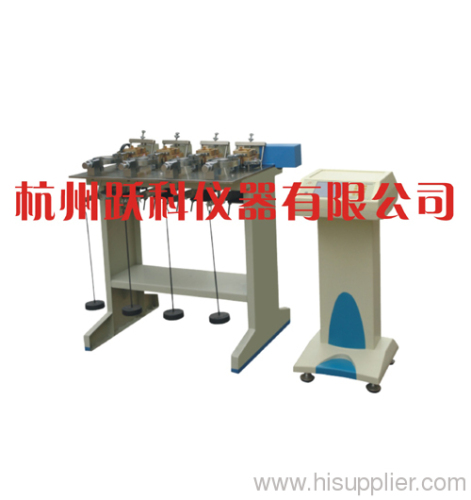

STSJ-5A Intelligent Electric Tetragenous Direct Shear Testing Apparatus

Application: This apparatus is used to test resisting shear strength of soil specimen. It
usually adopts four specimens under the different vertical pressure exerted on the
specimens to obtain shear stress when the specimen is destroyed.
Specification:
1. Area of soil sample:30cm²
2. Lever ratio:1:12
3. Vertical Loading: 50,100,200,300,400(Kpa)
4. Max. horizontal loading: 1.2KN
5. Shear rate: 5, 2.4, 1.5, 1, 0.8, 0.02, 0.01mm/min
6. 4 specimens in the same test
7. Working voltage: AC220V
8. Measurement: 1160x900x1160mm(main frame), 500x500x1020mm(controller), weight: 240kg
Features:

1.Stainless steel working table

2.stepping motor as pushing mechanism

3.high precision, low noise, MCU control

4.variable speed displayed by the controller, easy to operate

5.ABS vertical type controller

6.LCD display
